Metallographic Sectioning for Precision Sample Preparation

CX300 Series Benchtop Sectioning Machines

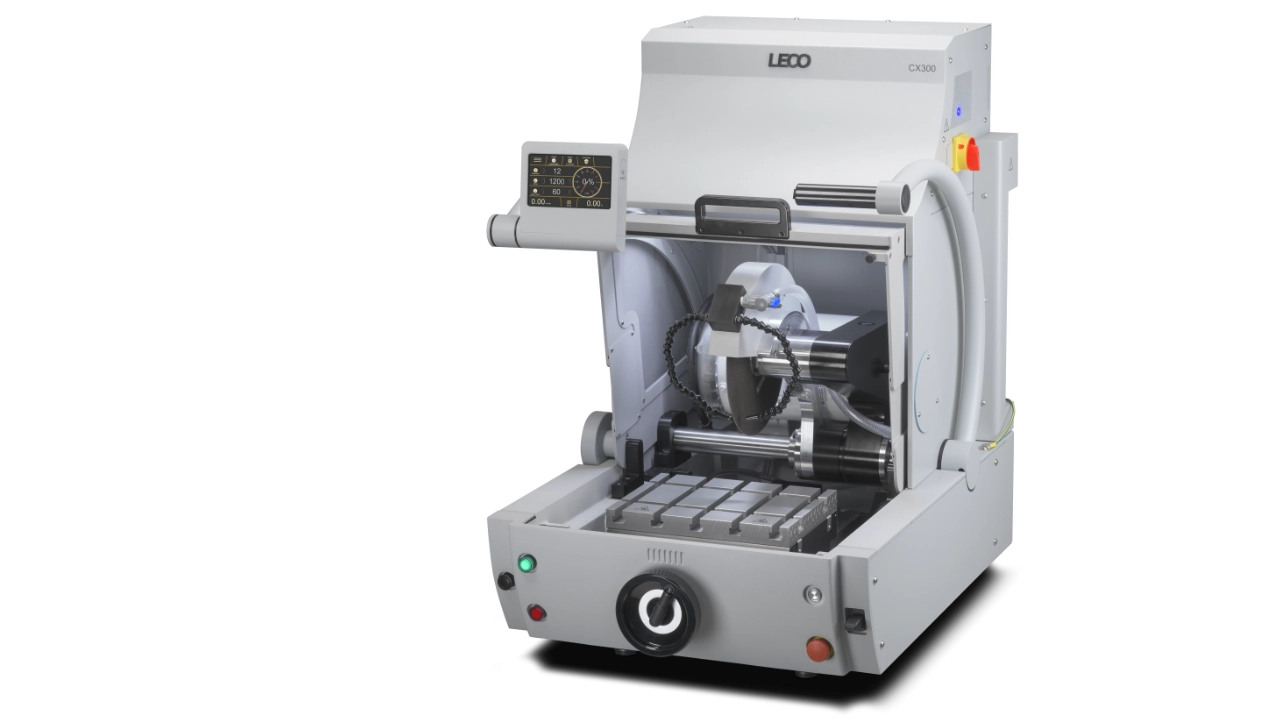

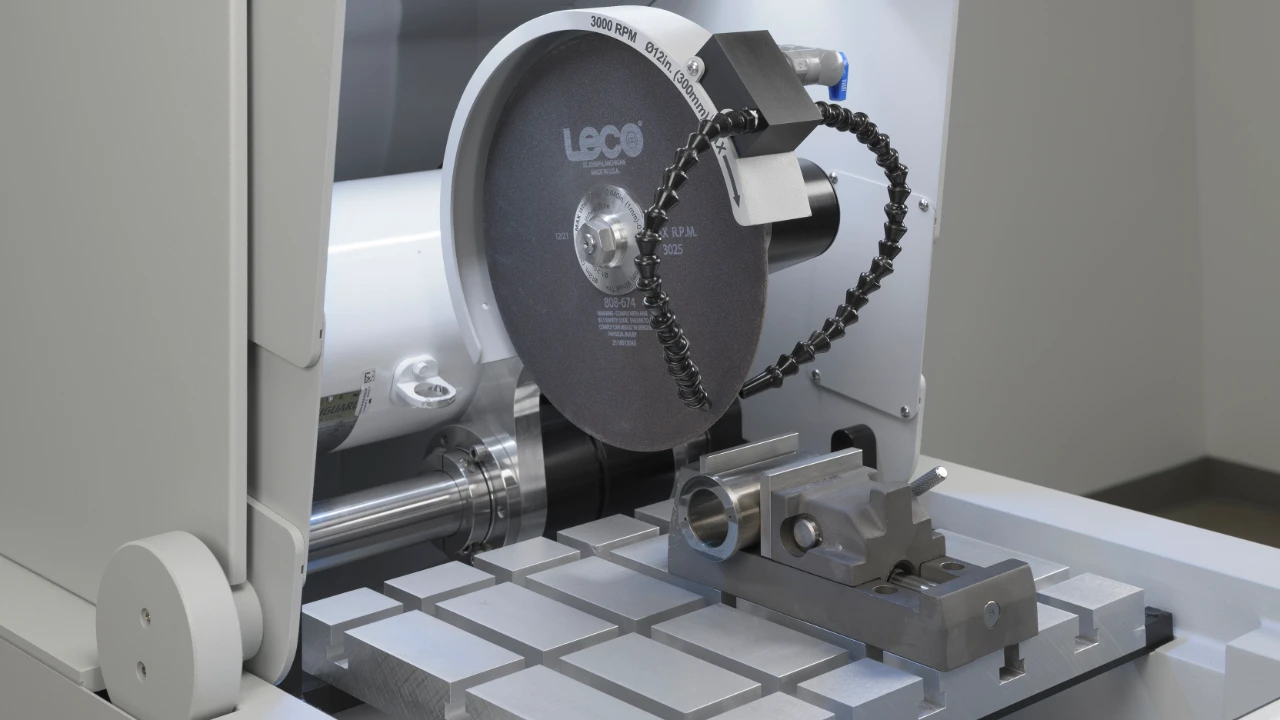

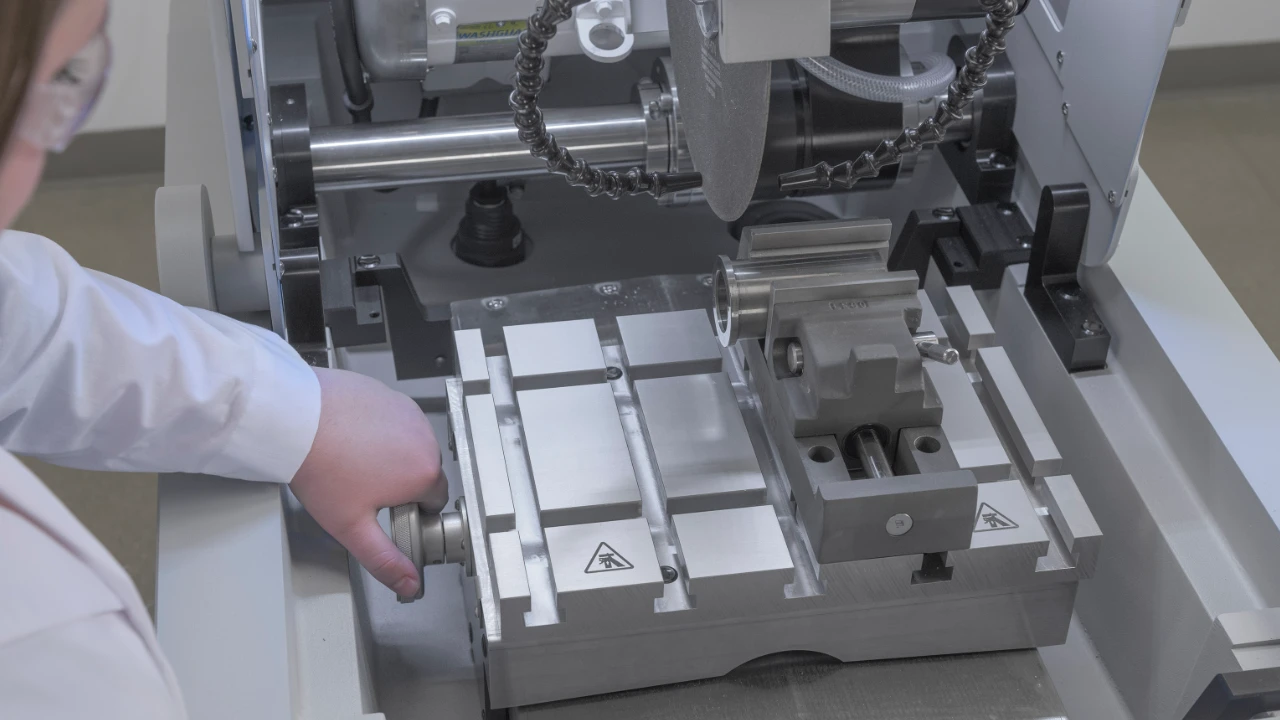

LECO CX300A saw for metallography sectioningMetallurgist cutting with metallography sectioning machineMetallurgist adjusting cutting tablemetallurgist changing cutting wheelmetallography saw cutting blade

Precision Meets Performance

The LECO CX300 Series of metallographic sectioning machines, including the manual CX300M, linear feed CX300L, and fully automatic CX300A, are compact benchtop instruments designed to streamline sample preparation with an emphasis on ease of use, laboratory safety, and simple maintenance. Capable of sectioning a broad range of materials for metallographic and materials characterization applications, the CX300 Series delivers efficient and safe operation while helping laboratories save space and improve productivity without sacrificing sectioning capabilities.

Why Choose the LECO CX300 Series

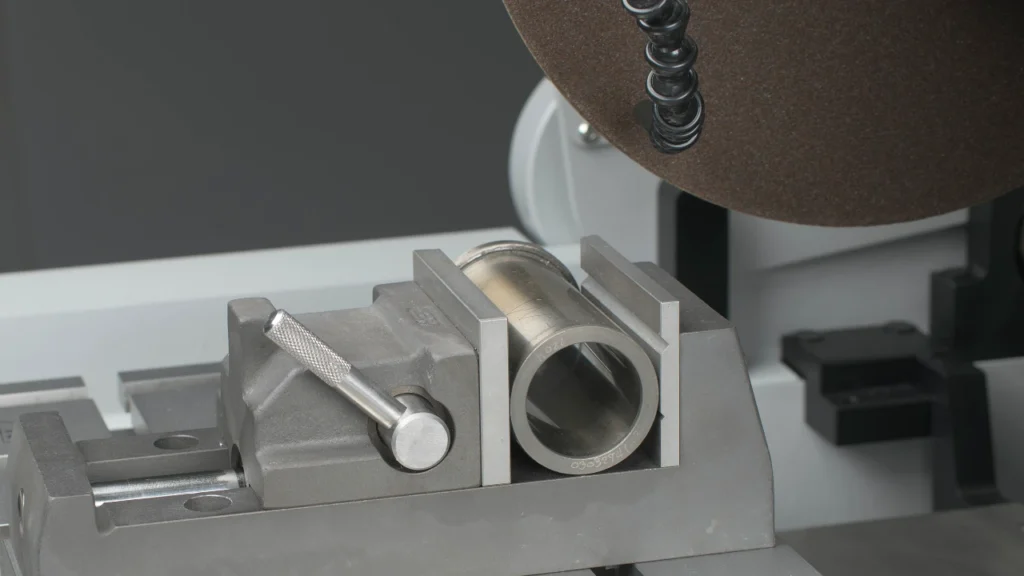

LECO CX300 metallography saw vice

Optimized for Efficiency and Throughput

The CX300 Series features a robust 5 HP motor with intelligent control and a variable-frequency drive for smooth, soft-start operation and consistent cutting speed. Automatic feed options enable unattended and precise cuts while high output cooling minimizes sample deformation. Built for demanding workloads, the CX300 Series delivers reliable performance that keeps operations running efficiently.

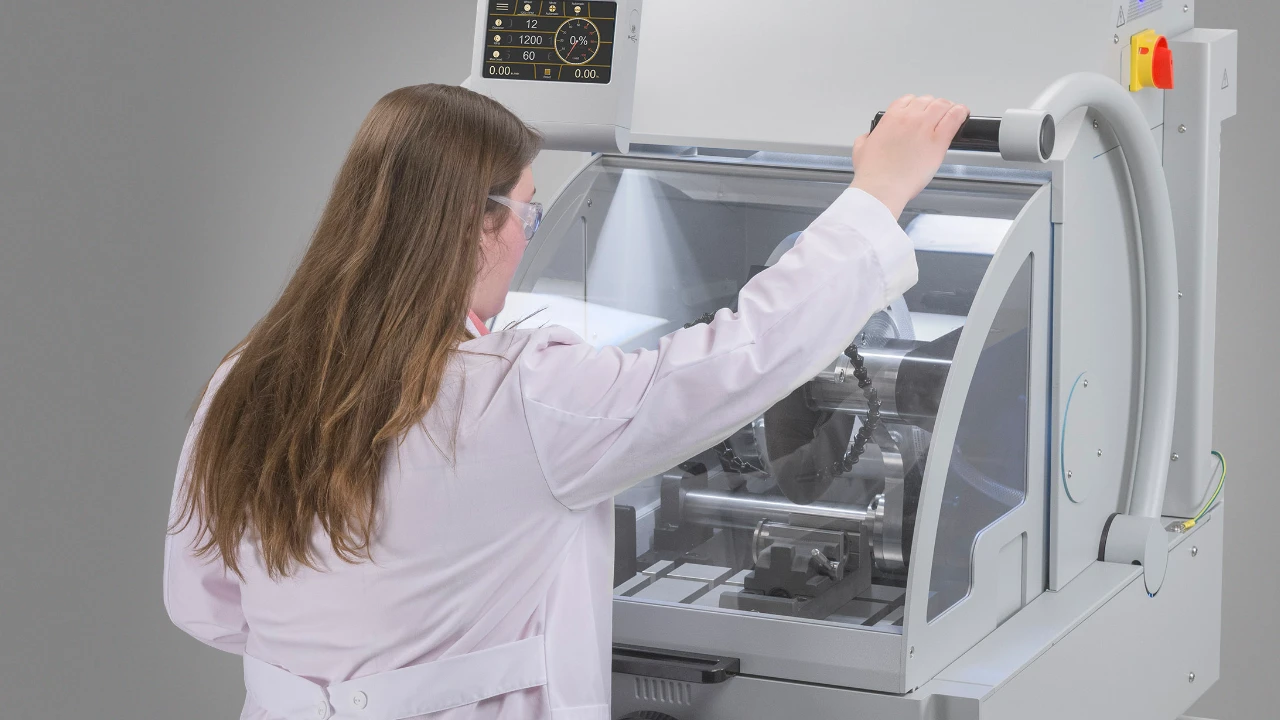

Metallurgist cutting with metallography sectioning machine

Clean, Safe Operation

The CX300 Series is designed for a clean, safe user experience. Its drip-free quarter-circle hood channels fluid away from the workspace while offering clear visibility through a large viewing window and LED-lit chamber. Safety features include an interlocking hood switch and front emergency stop, all built to meet ISO 16089 standards to provide peace of mind and a safe working environment for operators.

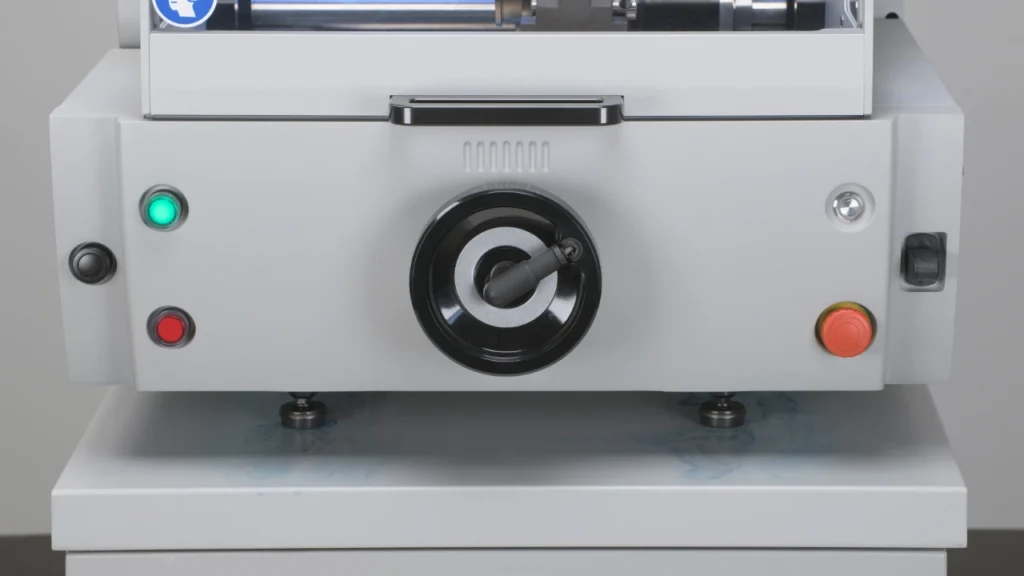

metallography saw on stand

Compact, Ergonomic Design

The CX300 Series offers a compact, bench-friendly design—just 28″ wide with a side-mounted power cord for flush wall placement—maximizing lab space without sacrificing cutting capacity. Ergonomic features like a counterbalanced cutting arm and an adjustable touchscreen (CX300A) ensure comfortable, low-effort operation. The layout of controls and easy-access front panel design for all M, L, and A models make these saws intuitive to use and reduce operator fatigue during long cutting sessions.

metallurgist changing cutting wheel

Easy Maintenance & Reliablity

The CX300 Series is built for durability and easy maintenance. Its corrosion-resistant, one-piece aluminum base eliminates weld points, while a sealed, grease-free spindle requires no daily lubrication. The quarter-circle hood opening allows superior accessibility for operation and maintenance, while the mobile recirculating coolant system with wash-down hose simplifies cleaning. These design choices mean less time spent on maintenance and more time using the saw. Each CX300 is built and tested to LECO’s high quality standards, ensuring consistent performance and a long service life even under heavy use.

Download the LECO CX300 Brochure

Instrument Applications

Battery Analysis
Building Materials
High Performance Materials
Metals, Minerals, & Ores

Core Analyses

Sample Prep / Hardness Testing

Instrument Details

Features

Expansive platform for a variety of needs
Manual (CX300M), Linear Feed (CX300L), and Fully Automatic (CX300A) models to match workflow and throughput requirements.
Powerful 5 HP (3.7 kW) motor
Delivers the cutting power needed for a wide range of samples, from routine specimens to demanding material
Variable-Frequency Drive (VFD) with soft-start operation
Provides smooth acceleration, reduces mechanical stress, and enhances user experience.
Large 12-inch (300 mm) cutting wheel capacity
Accommodates larger samples and expands application flexibility.
Quarter-circle hood design
Provides excellent access to the cutting chamber for easier sample loading, positioning, and cleaning.
Included 18-gallon (68 L) recirculating cooling system
Keeps samples and blades cool, improves cut quality and reduces heat damage.
Sealed spindle design
Reduces maintenance requirements while improving long-term reliability.
Integrated LED work light
Enhances visibility inside the cutting chamber for safer and more precise sample positioning.
Ergonomic operating design
Improves user comfort during routine operation and setup activities.
Robust fixturing capabilities
Supports secure clamping of a wide range of sample sizes and geometries.

Models

CX300M
CX300L
CX300A

Model Comparison

CX300M
CX300L
CX300A
Type
Manul
Linear Feed
Automatic
Table
Fixed
Movable table with manual hand wheel control for x- and y-axis adjustment
Motorized table with programmable movement for y-axis movement and hand wheel for x-axis movement
Cutting Method
Manual chop
Manual chop or linear sectioning
Automated linear sectioning with programmable feed and pulse cut control or manual chop
Variable Wheel Speed
No
No
Yes
Touchscreen Interface
No
No
Yes
Wheel Size
Up to 12″ (300 mm)
Up to 12″ (300 mm)
Up to 12″ (300 mm)
Recirculating Coolant System
Included
Included
Included
Power Options
230 ~V, 3ph or 380/460 ~V, 3ph
230 ~V, 3ph or 380/460 ~V, 3ph
230 ~V, 3ph or 380/460 ~V, 3ph

Options

Optional Stand, purpose-built for the CX300
Vices and Clamps
Catch Basket
Abrasive Wheels
Coolant Filter
LECO Metallographic Consumables
